Paper Machine Parts Explained: Full Anatomy Guide (2026)

Updated August 2026

Paper machine parts are the individual components, headbox, forming fabric, press rolls, dryer cylinders, doctor blades, and Yankee cylinders among them, that move stock through a paper machine from wet end to reel, each one removing water or shaping the sheet before handing it to the next section. Sourced as paper machine spare parts, they only make sense as a system. Search for a single component in isolation, a headbox spec sheet, a doctor blade material chart, and you get an answer to a narrow question. But a worn press felt, a mismatched doctor blade, or an undersized dryer cylinder rarely fails on its own; it shows up as someone else’s problem three sections downstream. This guide walks through the whole machine, wet end to reel, the way an engineer actually has to think about it: what each part does in the broader paper manufacturing process, how a failure in one section becomes a symptom in another, how to tell a genuinely compatible replacement part from a risky guess, and when replacing is worth it versus rebuilding. It’s written from inside the paper manufacturing industry, not as a generic parts catalogue.

Quick Specs, Paper Machine Parts at a Glance

These part categories cover a paper machine from wet end to reel, each with distinct wear characteristics.
Part category	Machine section	What it does
Headbox	Wet end	Distributes dilute stock into a uniform jet across machine width
Forming fabric	Wet end	Drains water and knits fibers into the initial sheet
Press rolls / vacuum rolls / couch rolls	Forming-to-press handoff	Couch roll finishes vacuum dewatering on the wire; press and vacuum rolls then squeeze out more water mechanically under nip load
Press felt / dryer fabric	Press & dryer sections	Carries the sheet, absorbs/releases pressed water, holds it against dryer cylinders
Dryer / Yankee cylinder	Dryer section	Steam-heated pressure vessel that evaporates remaining moisture
Doctor blade	Press / dryer / calender / Yankee	Cleans rolls, sheds the sheet, conditions the surface — the one part that runs everywhere
Refiner plates / screen baskets	Stock-prep (upstream)	Fibrillates and screens pulp before it ever reaches the headbox

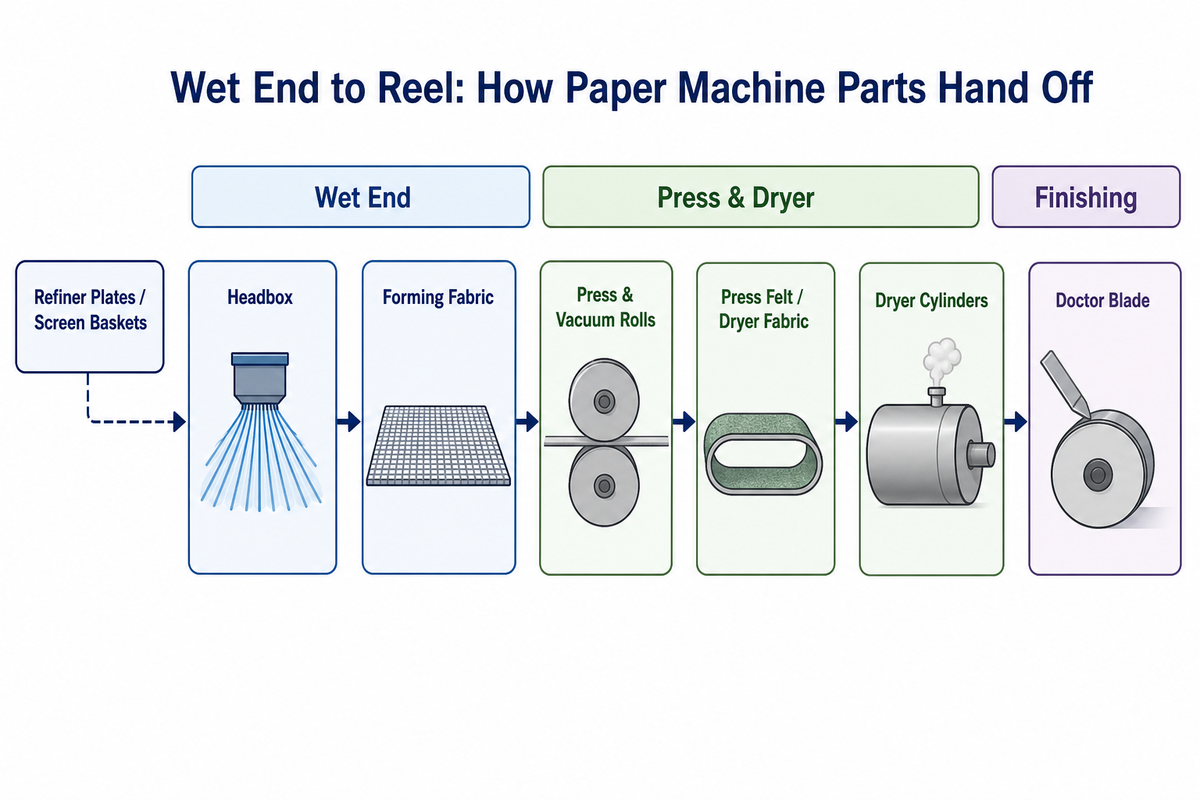

What Paper Machine Parts Actually Do, Anatomy From Wet End to Reel

A paper machine is a sequence of dewatering and drying stages, and each of the parts of paper machines exists to solve exactly one problem in that manufacturing process before handing the sheet to the next section. Stock, dilute paper pulp, typically well under 1% consistency at the headbox, leaves the reel as a finished paper sheet, with every part in between removing water either mechanically or by evaporation.

The headbox spreads that slurry into a uniform, controlled-velocity jet across the full machine width; a mismatch between jet speed and forming-fabric speed shows up later as fiber misorientation and uneven strength. In the forming section, the forming fabric drains the first and cheapest water out by gravity and a series of suction boxes under vacuum. A couch roll, the last vacuum-dewatering point on the wire, hands the sheet off to the press section, where press and vacuum rolls squeeze out the next stage of water mechanically under nip load, dewatering here’s far cheaper than evaporating the same water later. What the press section doesn’t remove becomes the dryer section’s problem: a train of steam-heated cylinders, each one a pressure vessel, that evaporates the rest. That designation carries real regulatory weight, though not always cylinder-by-cylinder: Delaware’s pressure vessel code, for instance, groups “rolls of a paper machine or a dryer operating as a single machine or unit” together as a single regulated pressure vessel rather than certifying each cylinder separately, and Washington State’s boiler law separately references TAPPI TIP 0402-16 for paper machine dryers specifically. In the United States, the current ASME Boiler and Pressure Vessel Code (2025 edition) is the baseline most manufacturers build dryer cylinders to; other markets apply their own equivalent, such as the EU’s PED or China’s TSG/GB codes. The doctor blade is the one part that shows up in almost every section, press, dryer, calender, and (on tissue lines) the Yankee, cleaning roll surfaces and shedding the sheet at each stage.

One boundary worth stating up front: refiner plates and screen baskets belong to the stock-preparation line, upstream of the paper machine itself, not to the machine sections covered here in depth. See the boundary note below for where to go deeper on that category.

Each part category above has its own selection logic, spec ranges, and OEM-compatibility questions: see headbox types and specifications, press, vacuum & couch rolls, dryer & Yankee cylinders, forming fabric, press felt & dryer fabric, and doctor blades for full spec ranges and selection matrices, or start from the paper machine parts hub to browse the full catalog by section.

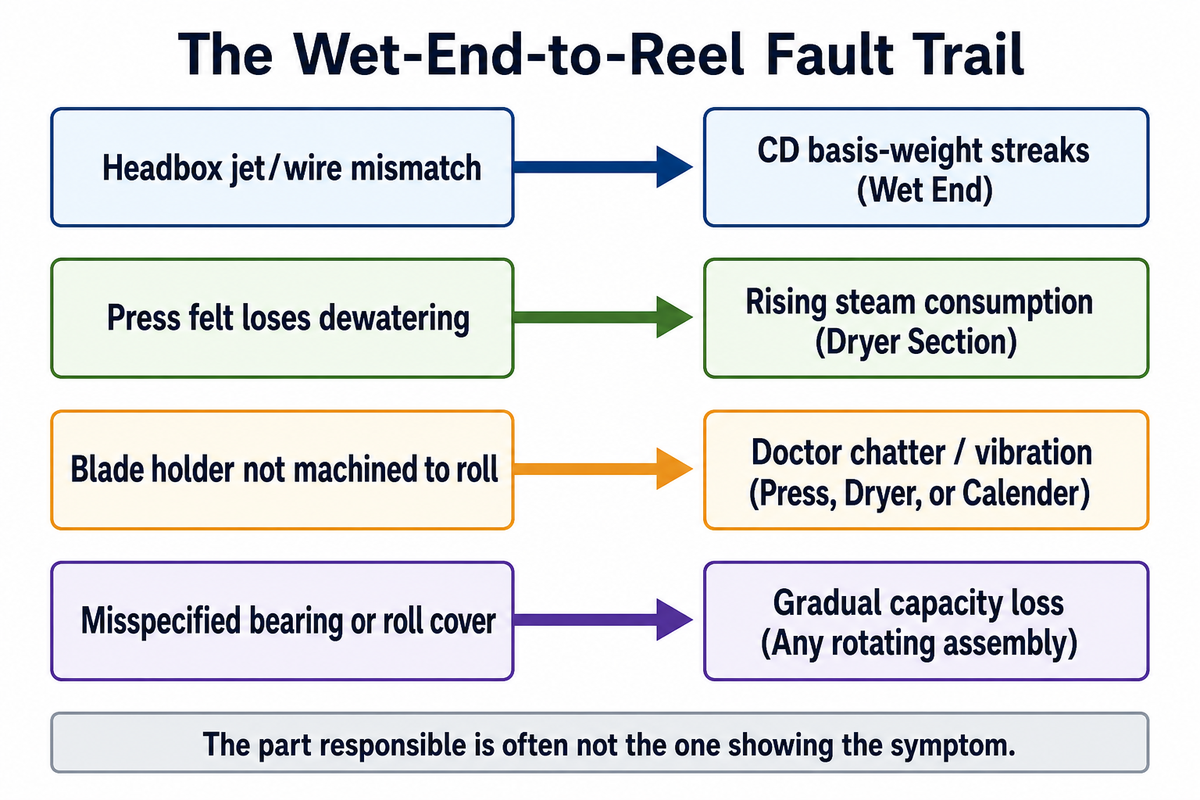

The Wet-End-to-Reel Fault Trail, How One Worn Part Becomes Another Section’s Problem

If your machine is slowing down or your paper has a defect, the part actually responsible is often not the one showing the symptom. Sections hand problems downstream, and by the time a symptom is visible it has usually already cost you somewhere upstream. Below, a symptom-to-part table traces the most common fault trails, how a problem in one part category surfaces as a symptom in a completely different one.

The Wet-End-to-Reel Fault Trail, how a worn part in one section surfaces as a symptom in the next; a cross-category synthesis, citation-sourced where noted and engineering-assessment where not.
Symptom you see	Section it shows up in	Part most likely responsible	Why
CD basis-weight streaks	Wet end	Headbox	Jet-to-wire speed mismatch or dilution-zone drift skews fiber distribution before forming even finishes
Rising steam consumption, no output change	Dryer section	Press felt (upstream)	A felt that stops dewatering re-wets the sheet after the nip, so the dryer has to evaporate water the press should have removed
Doctor chatter / vibration	Press, dryer, or calender	Blade holder or roll surface, not the blade material	A holder not machined to the roll’s actual diameter and beam profile creates uneven loading before the blade material is even a factor
Gradual capacity loss, no single failure event	Any rotating/conveying assembly	A misspecified bearing or roll cover elsewhere in the line	Component wear is cumulative, not binary — a misspecified part doesn’t always fail outright; it can generate harmonic vibration that damages couplings and seals over months
Sheet breaks recurring at one machine position	Wherever breaks recur	Forming fabric or felt at that specific position	Localized fabric wear or contamination creates a repeatable weak point rather than a random break
Reduced heat transfer, slower drying with steam pressure unchanged	Dryer section	Dryer cylinder shell condition	At a given steam pressure, wall thickness and condensate removal govern the actual heat flow — a thicker or scaled shell caps drying capacity (directional guidance from a single manufacturer source, not an independently verified industry-wide rule)
Uneven crepe or bulk (tissue lines)	Yankee section	Creping blade wear rate, not the Yankee cylinder itself	Inconsistent blade dulling changes the crepe pattern mid-reel even when the cylinder itself is in spec
Vibration and safety concern during pressure testing	Dryer section (out-of-machine)	Test medium choice, not the cylinder design	Because a dryer cylinder is a rotating pressure vessel, safety practice favors a hydrostatic (water) test over a pneumatic (air) one for an out-of-machine pressure test — a compressible gas stores far more energy if the vessel fails, the same reason a steam-filled vessel in service is inherently more dangerous than a water-filled one
Limitations — what this table won’t diagnose: control-system faults, furnish/chemistry shifts, and electrical faults produce similar symptoms but aren’t part failures. If the symptom moves around the machine rather than staying at one position, or if it correlates with a furnish change, suspect chemistry before you suspect a part.

⚠️ When not to trust this table

Symptoms that look identical to a parts failure sometimes trace back to furnish or additive chemistry instead, a sudden switch in recovered-fiber source, a retention-aid dosing change, or a water-loop contamination buildup can all produce the same wire marks or sheet breaks as a worn part. Before replacing anything, rule out a recent process or furnish change; a part swap won’t fix a chemistry problem, and a chemistry fix won’t be found by inspecting rolls.

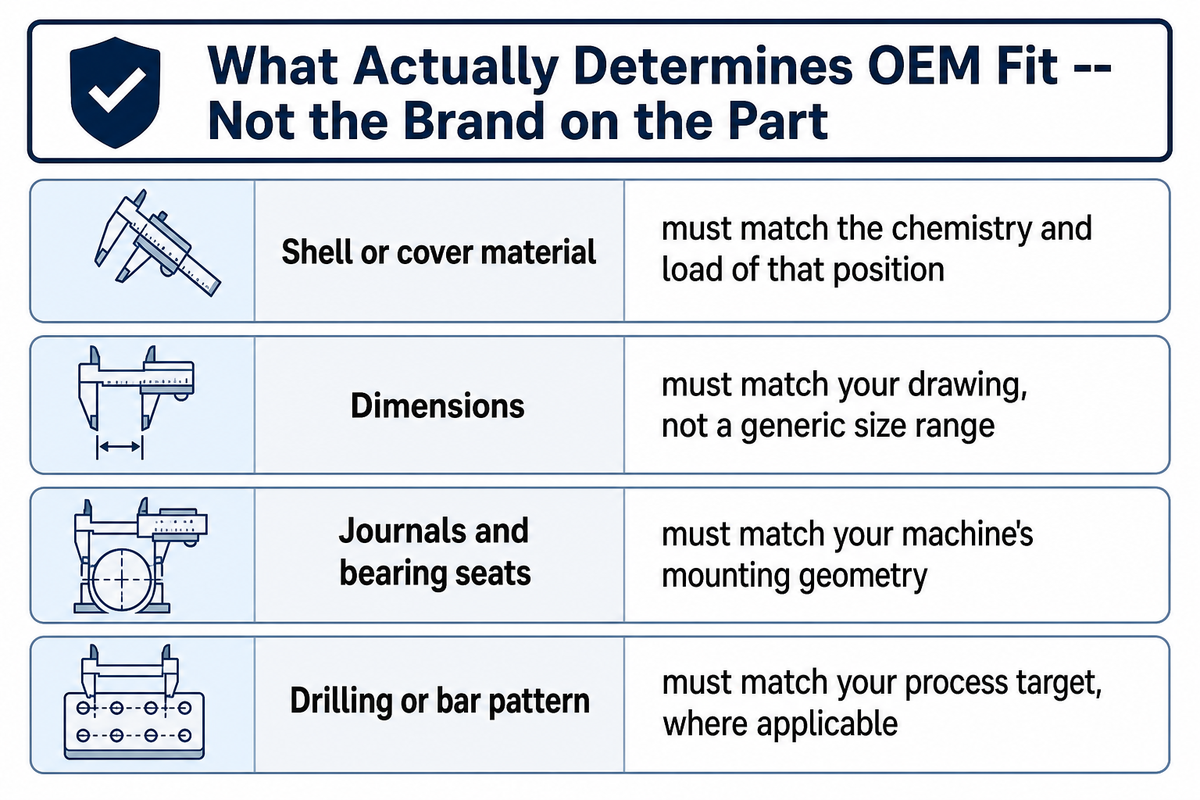

OEM-Compatible vs. Catalog Parts, What Actually Determines Fit

Whether a non-OEM part actually works on your machine comes down to four measurable variables, not the brand printed on it. Shell or cover material has to match the chemistry and load of that position. Dimensions have to match your drawing, not a generic size range. Journals and bearing seats have to match your machine’s mounting geometry. And drilling or bar pattern, where applicable, has to match your process target, not just look similar on a spec sheet.

Brand name is a poor proxy for fit for a structural reason, not as a matter of opinion. Non-OEM manufacturers typically reverse-engineer an original, they buy a part, measure it, and replicate its physical dimensions, without access to the original engineering drawings, material specifications, tolerance stacks, or balance requirements. Small deviations in geometry, material composition, or balance from that process don’t always show up immediately; they surface as accelerated wear or a reliability issue months later. That’s also why the honest answer to “does a non-OEM part void my warranty” is not always, but it can. That risk is real but conditional, not absolute in either direction.

The Cross-Category Fit Baseline — the same four questions, applied to every part category:

Part category	Primary OEM-fit factor	Secondary fit factor to confirm	New-vs-rebuild signal
Headbox	Type (hydraulic/air-cushion/open) matched to speed and grade	Control integration level (manual vs. DCS/QCS)	Rebuild if slice lips and CD tank are still true
Press/vacuum/couch rolls	Shell material + cover compound to nip load and doctor setup	Drilling pattern and lead time on your specified cover material	Re-cover if shell is free of fatigue cracking
Dryer / Yankee cylinder	Journal/steam-joint/siphon match to your drawing	Applicable pressure-vessel code for your market	New if shell wall thickness is out of tolerance
Forming fabric	Layer construction + mesh count to grade and speed	Endless vs. pin-seam, machine width/circumference	Always new — a consumable, not a rebuild candidate
Press felt / dryer fabric	Base construction + batt weight to nip load and dryer temperature	Material (PET/PPS/PEEK) for dryer-zone temperature	Always new — a consumable, not a rebuild candidate
Doctor blade	Material family to machine position (see next section)	Holder geometry match to roll diameter and beam	Always new — a consumable, not a rebuild candidate
Refiner plates / screen baskets	Bar pattern / slot width to your furnish and freeness target, not brand alone	Custom pattern vs. existing-holder pattern	Always new — a wear consumable

This is the synthesis none of the individual part pages spell out on their own. Each covers its own category’s fit logic in isolation. Put side by side, the pattern is the same across every category: fit is a function of drawing-level dimensions and duty match, not brand.

“When a customer sends us a worn part or an old drawing, we’re not trying to match a brand name, we’re matching journal diameter, bearing seat, drilling pattern, and shell material to what’s actually installed. A part built to someone else’s catalogue size is a bigger risk than one built to your machine’s real dimensions, no matter whose logo was on the original.”

Engineering Team, Henan Zejiang Paper Machinery

Wear Parts and Consumables, What to Keep in Inventory

Doctor blades wear faster and more predictably than almost anything else on a paper machine, which makes them the clearest case for stocking rather than reactive ordering. Industry practice is to replace a blade once it has lost roughly 15% of its original width, a figure that’s consistent with published guidance from doctor-system service providers and matches our own product specifications. Waiting past that point risks vibration, edge chipping, and eventually the holder contacting the roll surface directly.

Material selection tracks machine position more than any other variable, wet-end positions call for glass-free, soft blade materials, while press, dryer, and calender positions move toward carbon and ceramic-tipped composites for heat and wear resistance. We cover the full position-by-position material breakdown in our dedicated doctor blade guide; the composite and thermoset blade-material patents cited in References illustrate how far this material engineering has developed.

Inventory rule of thumb: stock doctor blades by position (not a single universal spec), keep at least one full felt/fabric change on hand for your busiest press position, and treat roll covers as a scheduled inspection item rather than a stock item — covers last long enough that pre-emptive stocking rarely pays off.

Several of these categories deserve a note on grade-specific wear. Calendering, smoothing the sheet under load for surface finish and printability, puts a distinct, high-performance demand on doctor blades and roll covers that dryer-section positions don’t share; smoothness targets on coated or fine-paper grades push toward harder, more wear-resistant blade materials than a board machine needs. And a Yankee cylinder producing tissue paper is really just another entry in the same drying cylinders family covered above, with its own creping-blade wear profile layered on top.

✔ Worth stocking

Doctor blades (by position, they wear on a predictable schedule)
One spare felt for your highest-load press position
Common bearing/seal sizes for rolls at frequent-failure positions

⚠ Order-as-needed, not stocked

Dryer/Yankee cylinders, long lead time regardless, plan around your shutdown window instead
Forming fabric, grade/speed-specific, custom-cut, not a shelf item
Refiner plates with a custom pattern, better sourced against your current sample

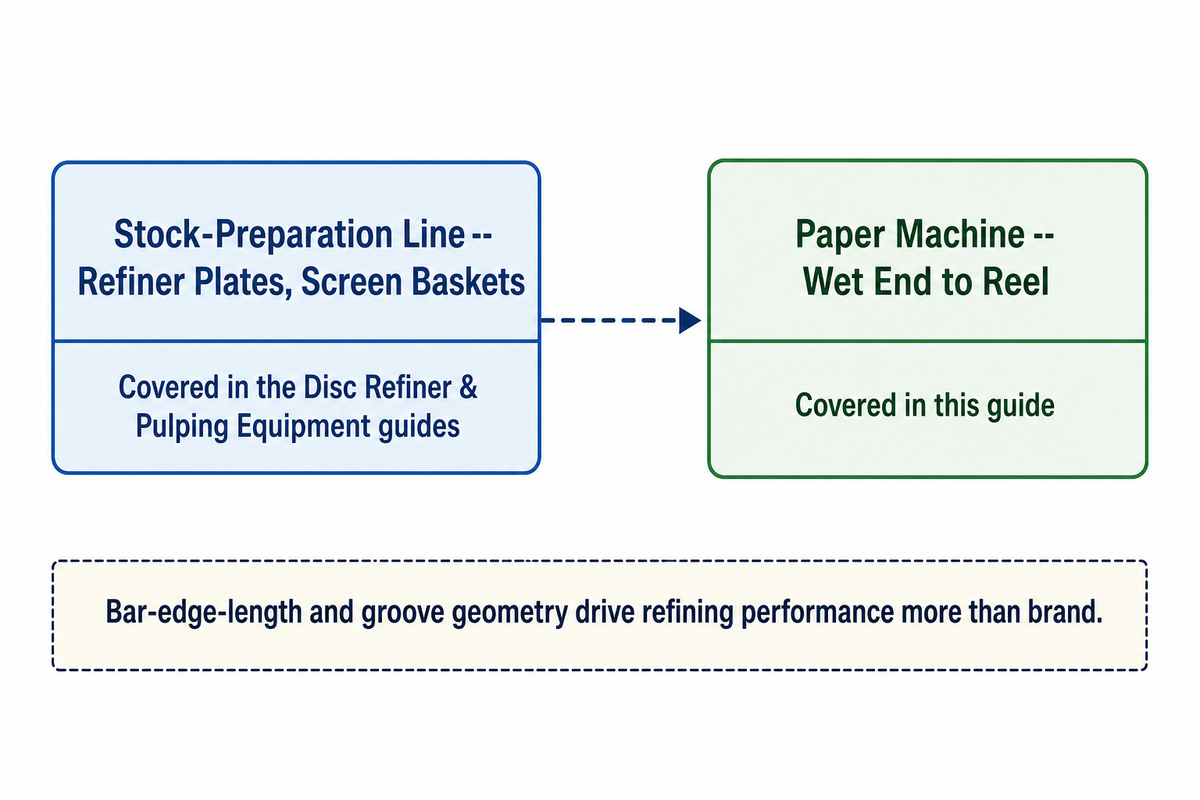

Where Refiner Plates and Screen Baskets Fit In

Refiner plates and screen baskets belong to the stock-preparation line upstream of the paper machine, not to the wet-end-through-reel sections this guide covers. For bar-pattern selection, alloy classes, and OEM cross-matching, see our dedicated guides on the disc refiner and pulping equipment, and the commercial refiner plates & screen baskets page for current specifications and OEM cross-reference.

We won’t duplicate that selection detail here. In short, bar-edge-length and groove geometry drive refining performance far more than which brand cast the plate does, a distinction that matters more for stock-prep buying decisions than it does for the paper-machine parts covered in this guide.

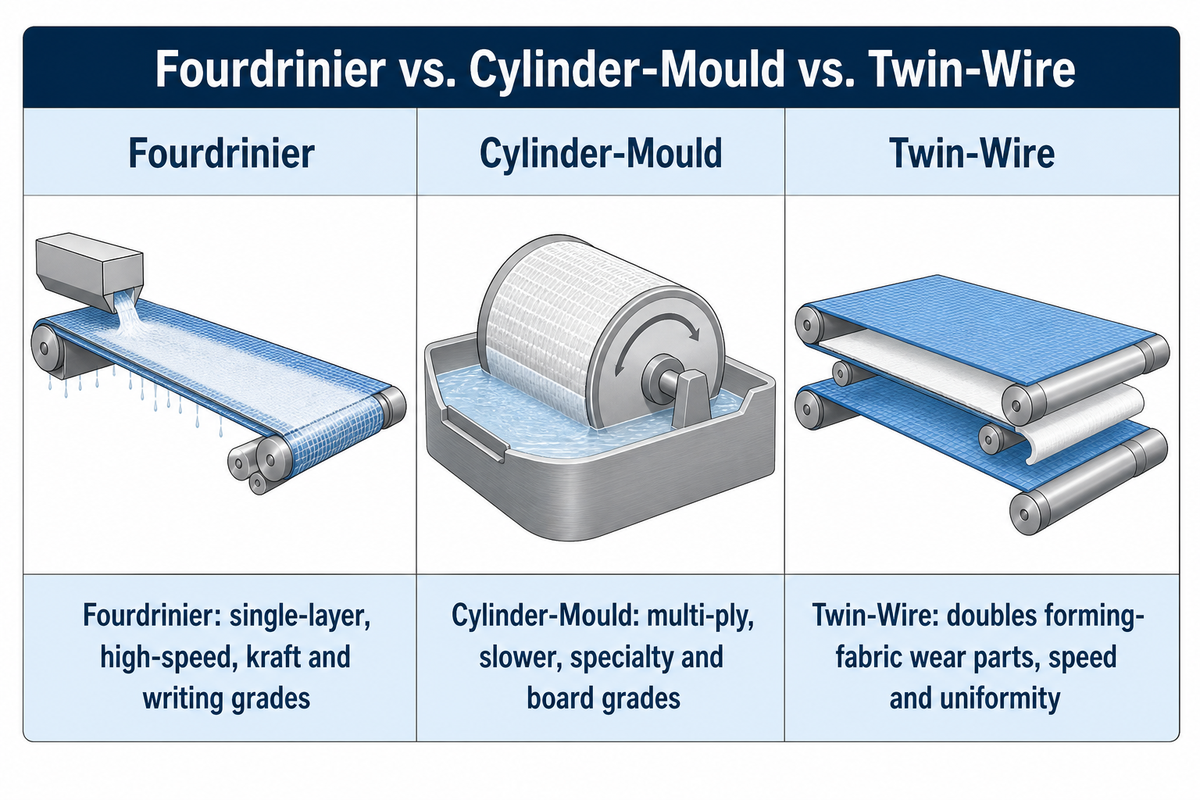

Fourdrinier vs. Other Machine Types, Why Your Parts List Differs

Q: What is a Fourdrinier machine?

A Fourdrinier machine forms the sheet on a continuous flat wire, draining stock by gravity and vacuum as it travels, the standard configuration for high-volume, single-layer grades like kraft and writing paper.

Stock from the headbox lands on a moving flat wire mesh; water drains through the mesh while fibers knit together into a continuous mat. It remains the standard configuration for kraft, writing, and many packaging grades because it handles continuous high-volume production well. A cylinder-mould machine forms each ply on a rotating cylinder partially submerged in a stock vat instead a mechanism that lets multiple plies with distinct compositions be combined wet, which is why it persists for specialty and multi-layer board grades even though it runs slower than a Fourdrinier, and a twin-wire machine sandwiches stock between two forming fabrics to drain from both sides at once, favoring speed and uniformity over a single-wire design. See our Paper Machines Explained guide for the full comparison of forming technologies across machine types.

Why this matters for parts, specifically: a Fourdrinier’s wear parts center on a single forming fabric and its associated foils and vacuum boxes; a cylinder-mould line adds vat-cylinder wear components that a Fourdrinier doesn’t have at all; a twin-wire configuration doubles the forming-fabric wear-part count in that section. Confirm your machine type before assuming a parts list from one configuration applies to another, a Fourdrinier building writing paper or printing paper runs a very different clothing and roll-cover spec than a cylinder-mould line producing corrugate, testliner, or other industrial paper board grades, and a high-speed newsprint machine wears forming fabric on a different cycle than either.

New, Used, or Rebuilt? The Parts-Level Economics

Across the paper industry, most mills would rather keep an existing paper production line running than wait on new paper mill equipment. At the individual-part level, the new-vs-rebuild decision isn’t primarily a price comparison. It’s a bet on how much of the original component’s engineering life is still usable and how much machine productivity you’d lose while waiting for a new part. For rolls specifically, a shell that’s still free of corrosion-assisted fatigue cracking is typically worth re-covering rather than replacing outright; once cracking or wall-thickness loss has progressed, a new shell removes the risk of catastrophic failure that a repair program is trying to avoid in the first place.

A bylined trade-press article by a bulk-material handling equipment executive reports one documented comparison worth noting here: two similar operations, where the site running a proactive, predictive maintenance program got 11 years of service life from its replacement components, versus just 3 years at a comparable site running reactive maintenance. The same reporting cites unplanned downtime cut by as much as 90% at that specific site, a single-source figure from outside the paper industry, not a benchmark to expect across every operation. That comparison is from bulk-material handling equipment rather than paper machines specifically, but the underlying logic, proactive replacement beats reactive failure, holds for paper machine rolls and cylinders too: a misspecified or over-worked component doesn’t always fail immediately, but the vibration and secondary wear it generates raises the lifetime cost well beyond the original part’s price.

Five-year cost framing — new vs. rebuild (illustrative structure, size to your own quotes):

Cost item	New build	Rebuild / re-cover
Purchase / service price	Highest	Typically a fraction of new-build cost
Lead time	Longest — full fabrication cycle	Shorter — existing shell/core reused
Downtime risk if shell condition is unknown	Low — new material, known state	Depends entirely on inspection quality before committing
Best fit	Wall thickness/cracking already out of tolerance	Shell structurally sound, cover/surface is what’s worn

Shell condition, not price alone, always decides — a rebuild quote is only a good deal once someone has actually inspected and cleared the underlying shell.

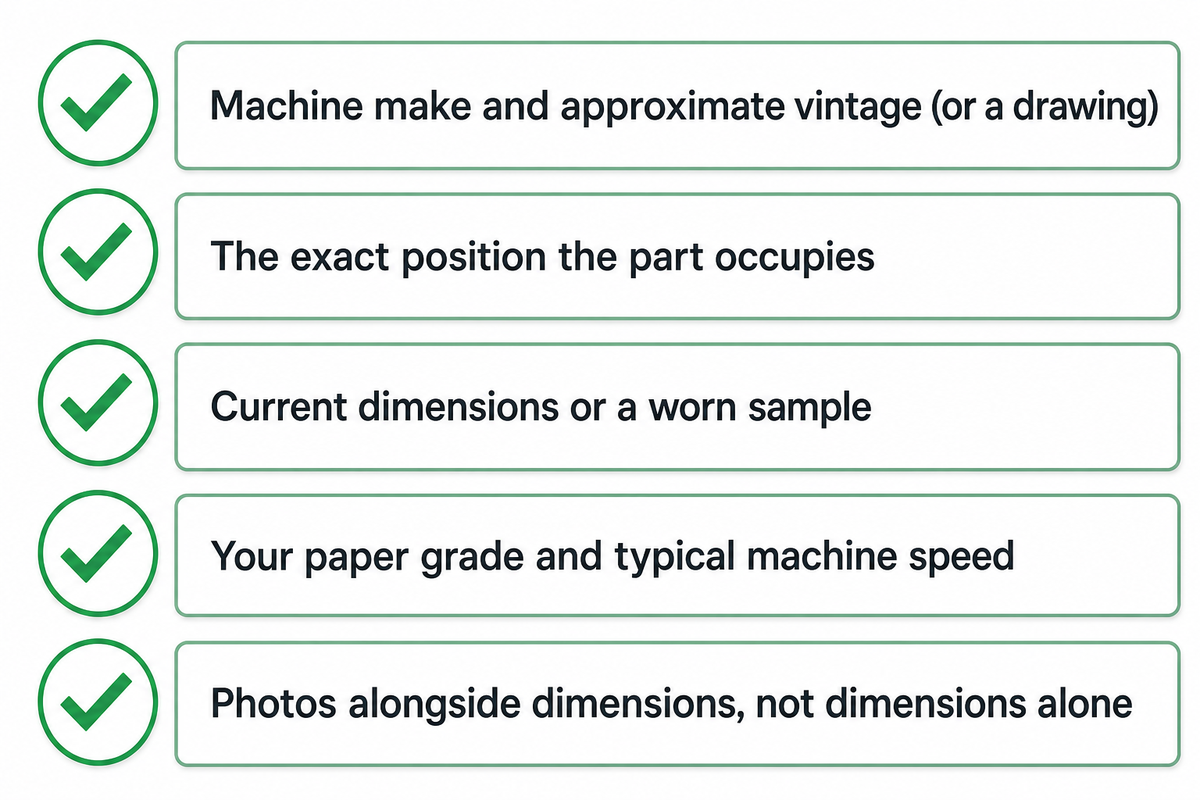

Documenting a Part Before You Contact Anyone

Whatever category you’re dealing with, the same documentation determines whether you get an accurate answer on the first try: your machine’s make and approximate vintage (or a drawing, when available), the exact position the part occupies, current dimensions or a worn sample, and your paper grade and typical machine speed. Sending a worn sample or clear photos alongside dimensions consistently shortens the back-and-forth more than any other single step, the same principle manufacturers themselves rely on when verifying a replacement part before it ships. It lets an engineer confirm fit before responding instead of after. Treat pressure-vessel and drive-train items as the critical parts to document first, since a poor fit there has the most direct effect on machine performance.

Skip any of this and the risk isn’t hypothetical: a part built to an approximate size instead of your actual drawing dimensions can end up out of tolerance, and on the shop floor that shows up as a bearing that won’t seat or a holder that won’t clear the roll. In practice, because a mismatch is far easier to prevent up front than to diagnose after installation, that’s exactly the mistake that costs the most time to unwind.

Our paper machine parts hub walks through this part-by-part, including a fit-and-spec tool for pulling the right documentation together by category.

FAQ

Q: What are the parts of a paper machine?

A paper machine’s main parts are the headbox, forming fabric, press rolls, dryer cylinders, doctor blades, and the calender/reel finishing section, each one handling a distinct stage of turning dilute stock into a finished, dry paper sheet.

Each part corresponds to a stage: the headbox and forming fabric handle sheet formation, press rolls and felts remove water mechanically, dryer cylinders evaporate the rest, doctor blades clean and condition rolls throughout, and the calender and reel finish and wind the sheet. See the anatomy section above for how these hand off to each other.

Q: What is the difference between a Fourdrinier and a cylinder-mould paper machine?

A Fourdrinier forms the sheet on a flat moving wire; a cylinder-mould machine forms it on a rotating cylinder submerged in a stock vat, which lets it combine multiple plies of different stock in one pass.

Flat-wire Fourdrinier construction suits high-speed, single-layer production like kraft and writing grades. Cylinder-mould construction runs slower but lets multiple plies with different compositions be combined wet, which is why it persists in specialty and multi-layer board manufacturing. Downstream wear parts overlap heavily, press rolls, dryer cylinders, doctor blades are shared, but the two diverge at the forming section, where the cylinder-mould’s vat-cylinder wear components have no Fourdrinier equivalent.

Q: What are common problems in paper machines?

Vibration, uneven component wear, and recurring part failures traceable to a fit or specification mismatch are the most frequently reported issues, most of them symptoms of a problem elsewhere in the machine, not the part where they appear.

Vibration is usually a downstream symptom rather than a root cause, a doctor blade holder that doesn’t match the roll’s actual geometry, a bearing that was specified to the wrong load rating, or a felt that’s lost dewatering capacity can each generate vibration that shows up somewhere else in the line. Our fault-trail table above maps the most common of these symptom-to-cause chains.

Q: How many sections does a paper machine have?

Four main sections make up a typical paper machine: forming, press, dryer, and finishing (calender and reel), preceded by the headbox that distributes stock onto the forming fabric at the very start of the line.

Some configurations add intermediate stages, a size press or film press between pre-dryers and post-dryers for surface finishing, or a separate Yankee section on tissue lines, but the forming-press-dryer-finishing sequence is the backbone across nearly every machine type.

Q: Why are paper machine components important?

Each component performs one stage in a sequential process, so a single underperforming part limits the whole machine’s speed and paper quality, not just its own section.

Because dewatering and drying happen in a fixed order, a bottleneck in one section, say, a press felt that’s lost capacity, doesn’t just affect that section. It shifts extra load onto the next section (the dryer, in this example), which is why component-level maintenance decisions have machine-wide consequences.

Q: Can I replace a Valmet, Voith, or Andritz part with a non-OEM part?

Yes, when the replacement is built to your machine’s actual drawing dimensions, journal, steam joint, drilling, and material, rather than matched by brand name alone.

Shell material, cover or coating, dimensions, and mounting geometry define a part, not which OEM originally supplied it. Mixed-brand fleets are common in practice, and OEMs themselves will often service parts they did not originally supply. What determines success is whether the replacement was built to your drawing and verified before shipment. See the fit baseline table above for the specific fit factors by part category.

Our Perspective

This guide draws on Henan Zejiang’s own product engineering across headboxes, press rolls, dryer cylinders, forming fabric, press felt, doctor blades, and refiner plates, the same categories our own factory builds and rebuilds for paper mills across Asia, the Middle East, Africa, and South America. Where a claim needed independent grounding beyond our own product pages, we cited published regulatory, academic, trade-press, and patent sources rather than relying on our own word alone, the doctor-blade material patents cited above are one example of the published, third-party technical record we drew on. Reviewed by the Henan Zejiang Paper Machinery Co., Ltd. technical team.
